High accuracy leak proof multi head weigher weighing packing machine for small particle,powder

Application

leak proof Multihead Weigher Machine is suitable for weighing small granules such as rice, sugar, fine tea, detergent powder, etc.

leak proof multi head weigher

Features

1.Special load cell with high precision and high standard.

2.Program recovery function can reduce operation failures and support multi-segment weight calibration.

3.No products auto pause function can improve weighing stability.

4.Linear amplitude can be adjusted independently.

5.Many languages available for global markets.

6.100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation.

Mechanical character

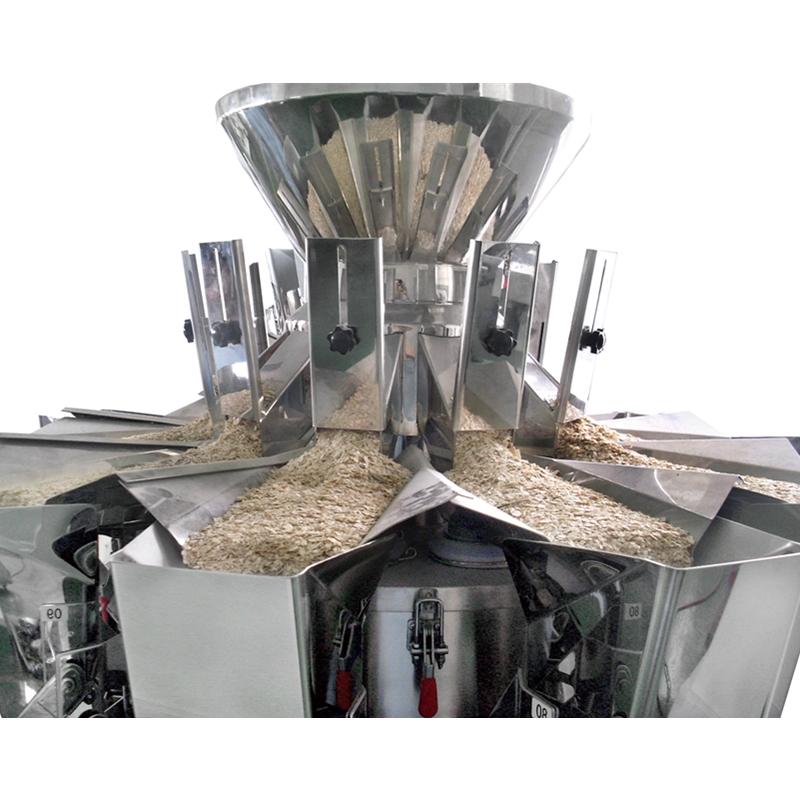

1.Multi-mouth feeder can dispense products into each linear feeder pan effectively.

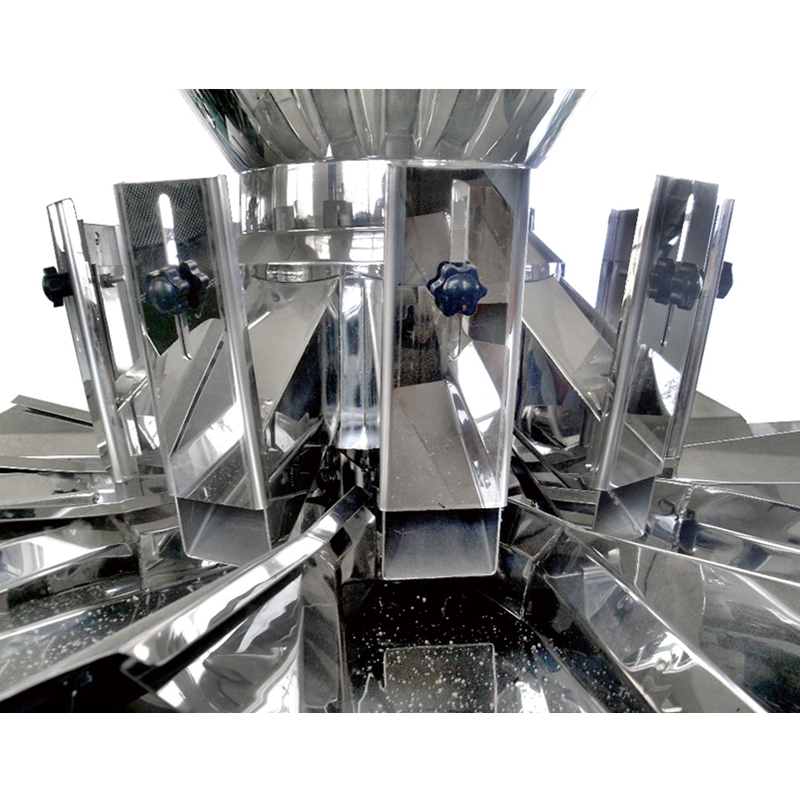

2.Specially designed U-shaped linear feeder pans can avoid leaking problem.

3.Mold making process and uniform design standards contribute to better interchangeability for spare parts.

4.Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.

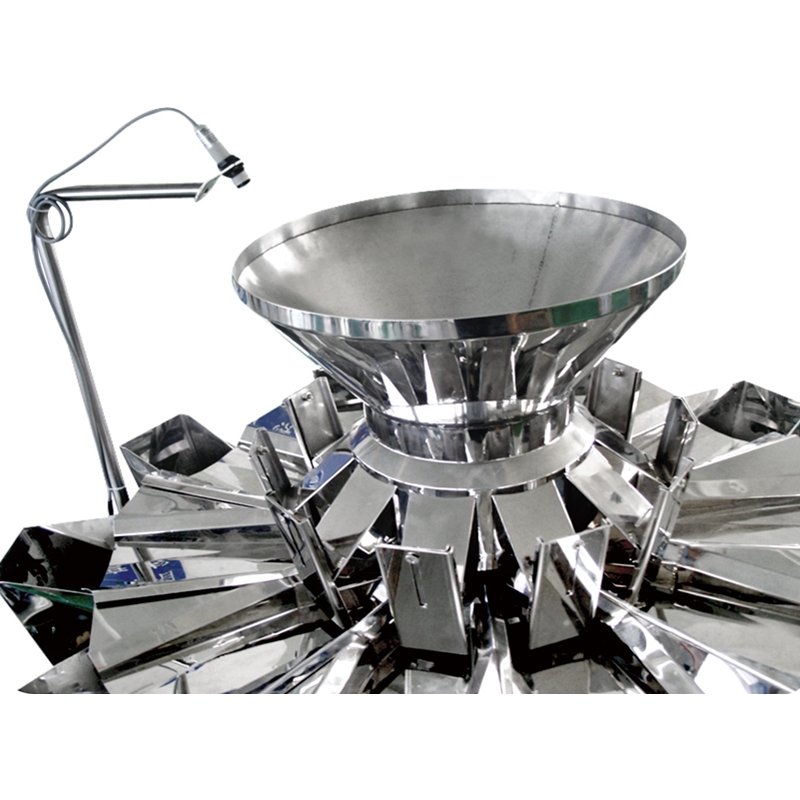

5.Weighing type for material detection is available, which can make accurate control of feeding time & material thickness and ensure weighing accuracy.

Technical specification

ModelJW-A10JW-A14
Identify CodeA10-1-4A14-1-4
Weighing Range20-1000g20-1500g
AccuracyX(0.5)X(0.5)
Max Speed65P/M120P/M
Hopper Volume1.6L/2.5L
Control Panel7''Touch Screen
OptionsTiming Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement220V/1000V/50/60Hz/10A220V/1500W/50/60Hz/12A

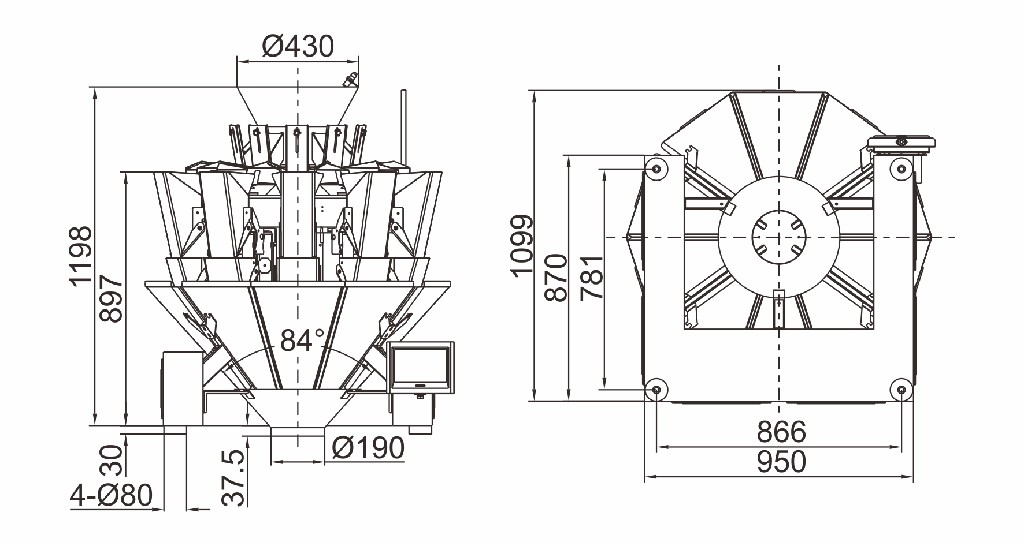

Packing Dimension(mm)1620(L)x1100(W)x1110(H)1700(L)x1100(W)x1265(H)
Gross Weight380kg490kg


Product Details
