multi-level check weigher is suitable for weighing and sorting materials in agricultural, aquatic, industry and other industries. The packing status of the materials can be in the form of bags, boxes, etc.
1. Intelligent design, automatic parameter adjustment and easy operation.

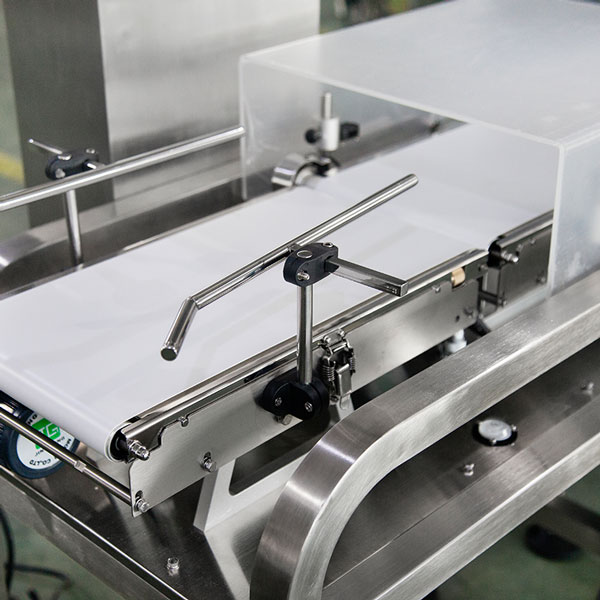

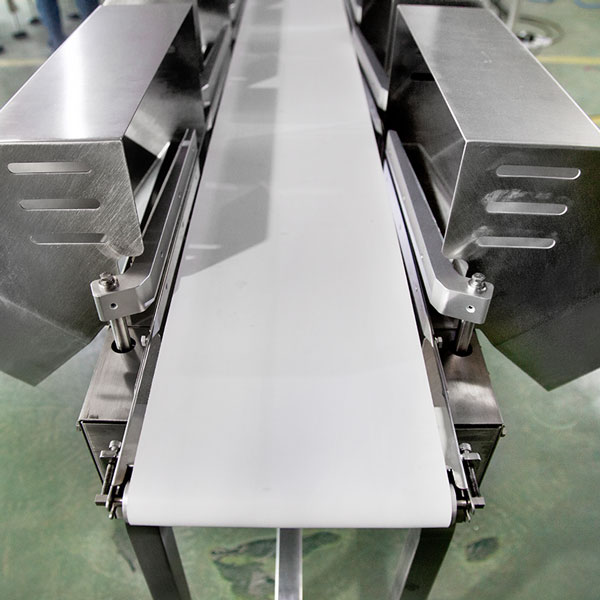

2. Material dense alarm, automatic generate column production report.
3. Conveyor structure adopts detachable design for easy disassembly and cleaning.
4. PLC control system, standard industrial control screen, easy to expand other value-added applications, such as multi-stage weight sorting, weight feedback, etc.

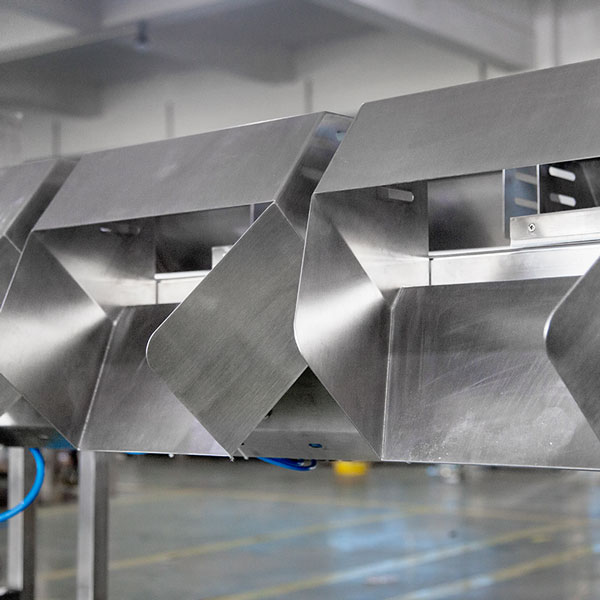

The selection section has 6 levels of sorting, which can satisfy the sorting of different weight ranges of materials.
Model | JW-C1000 |
Identify Code | C1000-1-2 |
Weighing Range | 100-1000g |
Accuracy | XIII(1) |
Max.Belt Speed | 62m/min |
Max Speed | 100P/M |
Belt Size(mm) | 450(L)X220(W)mm |
Control Panel | 7”Touch Screen |
Reject Method | Air blowing/Air-reject/Pneumatic pusher/Slide type |
Power Requirement | 220V/400W/50/60Hz/2A |

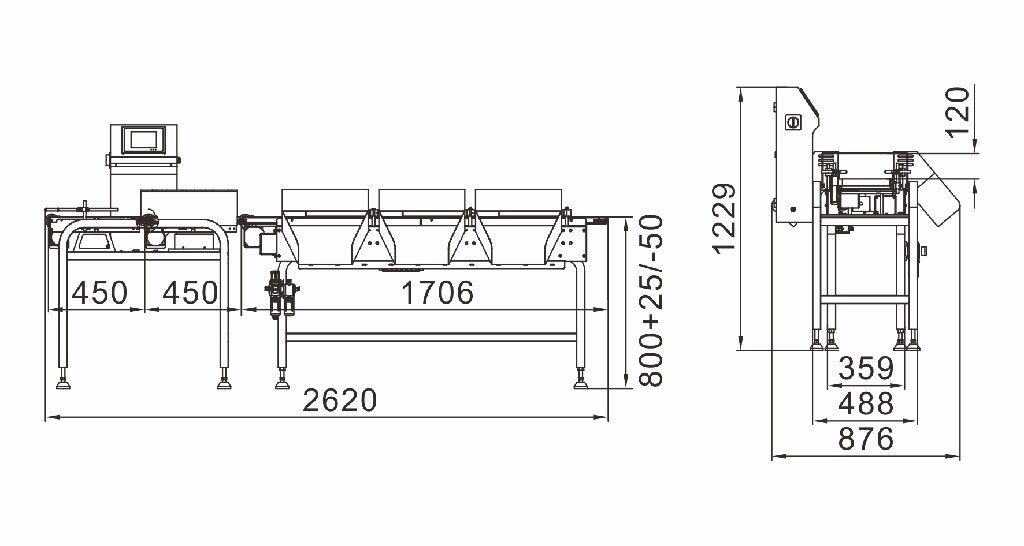

Packing Dimension(mm) | 1820(L)x1300(W)x1290(H) |
Gross Weight | 250k |
