Application
3 Heads linear weigher is suitable for weighing small granules such as sugar, salt, seeds, rice, sesame, monosodium, coffee, seasoning powder, etc.
Features
1. New highly integrated modular control system.
2. Automatic amplitude adjustment function, more convenient to debug.
3. Can weigh a variety of different materials at the same time to achieve mixed material packaging.
4. According to the production situation, parameters can be directly modified in operation, which is easy to operate.
5. Adopts the feeding system of the stepless vibration machine, so that the material is more even and the weighing range is larger.
Mechanical Character
1. Machine are made of stainless steel, clean and sanitary.

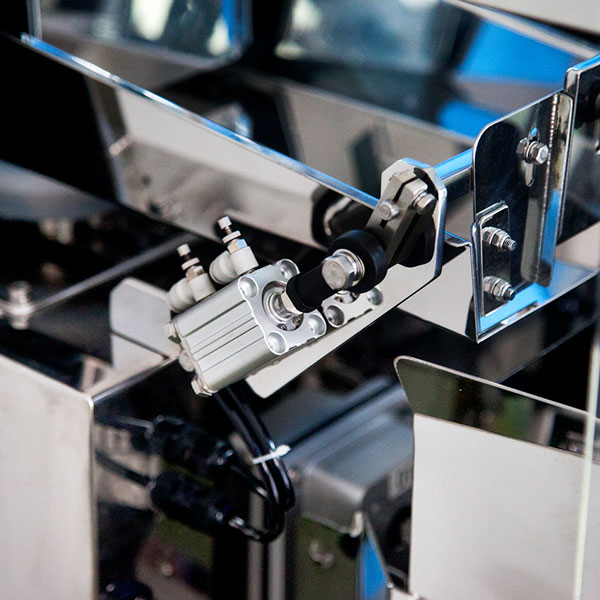

2. The discharge end of the vibration pan is equipped with pneumatic gate, which can realize precise feeding with small flow and effectively improve the weighing accuracy.
3. The parts in contact with the materials (stopper, discharge funnel,vibrator pan, weighing hopper , etc.) can be disassembled quickly and cleaned conveniently.
Technical Specification
Model | JW-AX3 |
Identify Code | AX3-2-1 |
Weighing Range | 50-4000g |
Accuracy | X(1) |
Max Speed | 30P/M |
Hopper Volume | 6L |
Parameters Press No. | 100 |
Max Products Mixed | 3 |
Control Panel | 7”Touch Screen |
Options | Dimple Plate/Timing Hopper/Printer/Reject Device |
Power Requirement | 220V/500W/50/60HZ/3A |

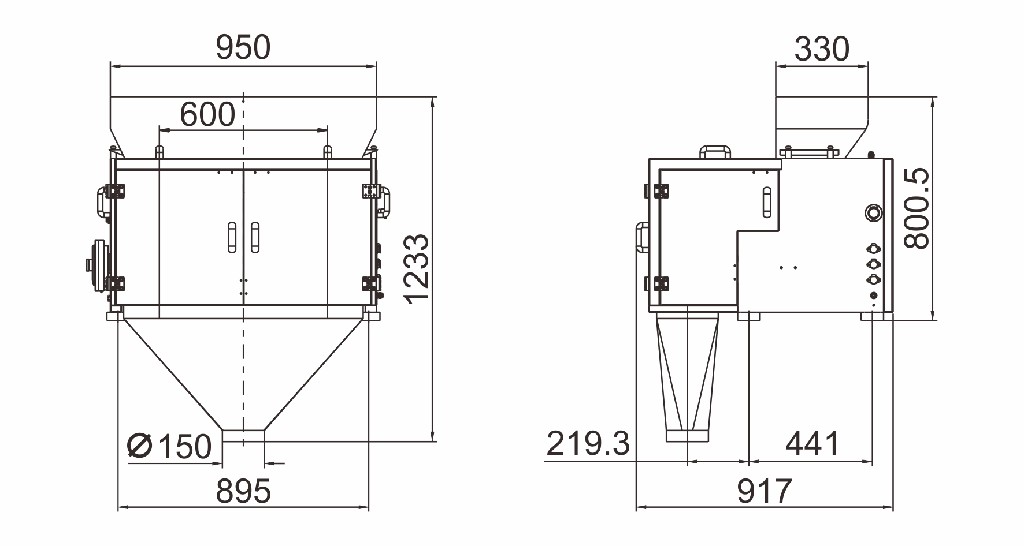

Packing Dimension(mm) | 1200(L)X1050(W)X1050(H) |
Gross Weight | 180kg |
